Box integration

This page includes:

Note: Before implementing this channel integration, contact your Customer Success Manager for FortiMail Workspace Security to make sure that this functionality is included in your current FortiMail Workspace Security license.

About the Box integration

FortiMail Workspace Security can be integrated with various products. Your organization can protect itself from malicious files infiltrating the organization through Box. This page explains what configurations are required to integrate FortiMail Workspace Security with Box. For general information about integrating FortiMail Workspace Security with other products, see Bundles and Channels.

When the FortiMail Workspace Security-Box integration is fully configured, FortiMail Workspace Security will scan all the organization folders, both shared and private, each time a file is uploaded or modified. Scan details are included in the Scans page in FortiMail Workspace Security. Remember to click the Box filter icon [] to show only Box scans.

This page describes what must be performed by FortiMail Workspace Security Support and what must be performed by you, the FortiMail Workspace Security admin-user - to perform the integration.

About quarantining Box files

By default, each new FortiMail Workspace Security-Box integration is configured to quarantine files. Files will be quarantined when a scan assigns a malicious verdict to a file, or when someone changes the verdict of a scan to malicious. When a file is quarantined:

  • The quarantined file is moved to the quarantine folder.

  • The quarantined file it is not accessible to the owner of the file.

  • FortiMail Workspace Security may be configured to send an email alert to the owner of the file to inform the owner that the file has been quarantined. For details, see Alerts.

  • FortiMail Workspace Security may be configured to send an alert to administrators to inform them about the quarantined file. For details, see Alerts.

  • The quarantined file is replaced by a text file in its original location. The replacement "placeholder" text file has the same name as the quarantined file, but has an additional .txt extension. For example, the placeholder file for Document-123.docx would have the name Document-123.docx.txt

    The content of the placeholder text file is similar to:

    Document-123.docx was blocked by FortiMail Workspace Security. Contact your system administrator in order to access this file.

When an administrator releases a quarantined file [by changing its verdict to clean]:

  • An email is sent to the owner of the file to inform the owner that the file has been released from quarantine.

  • The released file will be accessible to the owner, in the original location of the file.

  • The placeholder text file is deleted.

    For details about releasing a file from quarantine, see Changing Verdicts.

Note: To disable quarantine, contact FortiMail Workspace Security Support [support@perception-point.io].

Prerequisites

In order to perform the required integration with FortiMail Workspace Security, make sure that you have the following prerequisites:

  • Box Business Plus - or higher

  • Administrator rights in Box

  • Admin role in Perception Point X‑Ray

The Box integration procedure

Perform the procedure below to integrate FortiMail Workspace Security with Box.

Step 1: Activating Box

This step activates the FortiMail Workspace Security-Box integration.

To activate the Box integration:

  1. In FortiMail Workspace Security, in the left navigation menu, select Settings > Bundles and Channels.

  2. Under Assigned Bundles, make sure that at least one bundle is assigned that includes the Boxchannel.

    Note:

    • If a bundle that includes the Box channel is assigned, then Box will appear in the list of channels under Enabled Channels.

    • You can click Bundles Settings, that is located on the right of each Assigned Bundle, to see which channels are included in a bundle.

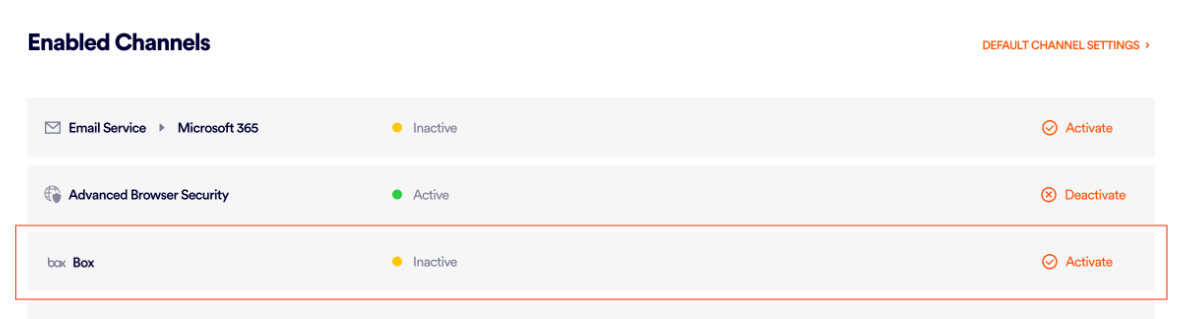

  3. Under Enabled Channels, locate "Box" and then click "Activate".

    You'll be redirected to Box.

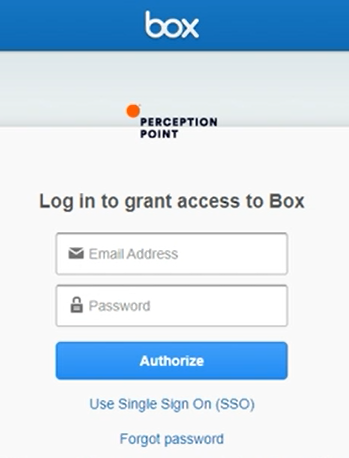

  1. Log-in to Box with your admin credentials.

    Your FortiMail Workspace Security-Box integration should now be functional.

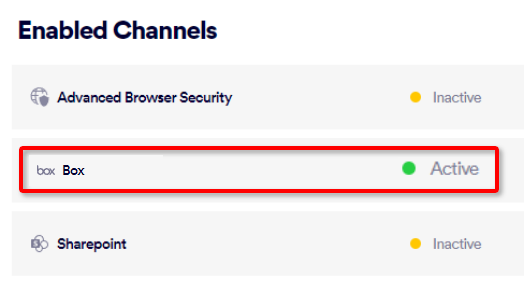

  2. Make sure that OneDrive now appears as "Active" under Settings > Bundles and Channels > Enabled Channels.

Step 2: Enabling quarantine - Internal

This step is optional. It should be performed by FortiMail Workspace Security Support - after Step 1 is completed.

This step configures the quarantine requirements for the FortiMail Workspace Security-Box integration. For details about quarantine, see About quarantining Box files above.

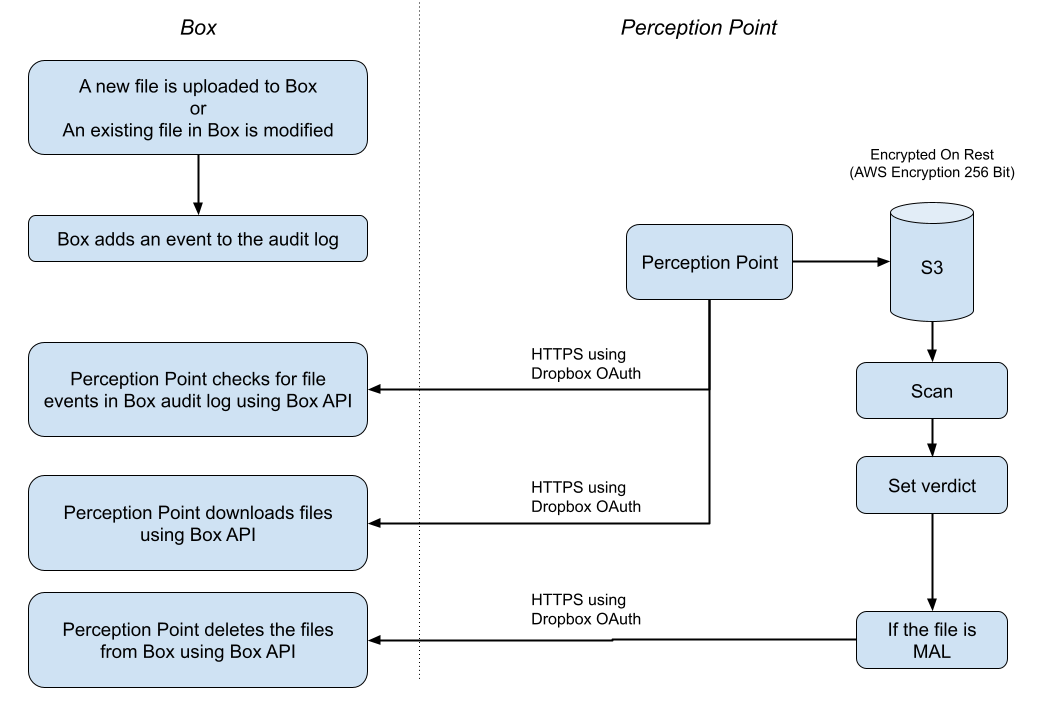

Flow chart diagram

Hover your cursor over the graphic below to enlarge it
