Step 3 - Configuring "other" email systems

You can integrate "Acronis Email Security" with various email services. This enables "Acronis Email Security" to protect all incoming mail from the integrated services.

This page discusses how to connect "Acronis Email Security" to an email service that is not Google Workspace, Microsoft 365, or Microsoft Exchange. We will refer to these as "other" email services.

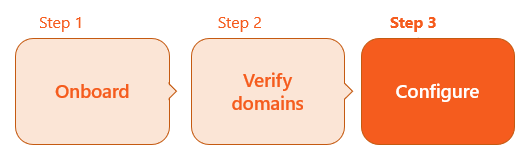

This is the 3rd step of the procedure to integrate "Acronis Email Security" with other email services:

To enable your "Acronis Email Security" integration with other email services, some configurations must be made in your email service. Perform these configurations as described below.

Note: The procedures below will differ depending on the specific email service that you are using.

1. Add the "Email Security" IP addresses to the safe list

Depending on your organization's AWS environment, add the following IP addresses to the list of allowed IP addresses in your environment: [See the drop-down below for details on on how to determine your environment]

For US environments	For EU environments	For AUS environments
54.227.64.76 3.81.182.154 3.93.155.149 3.95.118.12 3.95.142.181 52.12.169.124 [required only if Muti-region is enabled]	99.81.216.78 34.249.190.60 108.128.137.108 99.80.189.20 52.12.169.124 [required only if Muti-region is enabled]	13.236.255.231 54.66.125.250 52.12.169.124 [required only if Muti-region is enabled]

2. Create a spam rule for spam emails [optional]

Perform this step only if your email service supports rules with headers.

This procedure enhances the ability of suspected spam to be sent to the user’s junk/spam folder.

The example shown below is for Microsoft Exchange. The procedure will differ depending on the email service that you are using.

In Exchange Admin, select Mail flow > Rules > "Create a new rule…"
Scroll to the bottom, and click "More options…"
1. Name: Perception Point Spam Rule
Select "Apply this rule if…" > "A message header…" > "Matches these exact patterns"
Select "Enter text" and then specify the header name: X-PERCEPTION-POINT-SPAM
Select "Enter text patterns" and then specify the following words or phrases: FAIL - and then click "+"
Select "Do the following…" > "Modify the Message Properties"
Set the Spam Confidence Level to "6"

3. Configure your MX record

Recommendation:

Changing MX records to "Email Security" Inbound relay

When updating the MX records to route emails through the "Email Security" inbound relay, it is strongly recommended to follow the best practices that are shown below, to ensure optimal security and functionality:

Delete the old MX record.
After updating the MX to "Email Security", ensure that the old MX record is removed from public DNS. Keeping the old MX record publicly accessible can expose your mail infrastructure to potential misuse or unauthorized access.
Implement IP restrictions.
- To enhance security, configure the receiver server to accept emails only from IPs of "Email Security". This measure prevents attackers from bypassing the "Acronis Email Security" email scanning by attempting to send emails directly to your original mail server.
- Restricting access to trusted IPs significantly reduces the risk of direct delivery attempts by malicious actors.

TLS considerations

Before changing or adding the MX record as described below, check if the domain that you're adding supports TLS encryption. If not, in "Acronis Email Security", disable TLS encryption for the domain. [See below for instructions.]

Non-TLS communication means that emails are sent as plain text, giving a "man-in-the middle" attacker the ability to monitor the network traffic. In contrast, TLS communication encrypts the emails while they are transmitted.

When you edit the TLS configuration in "Acronis Email Security", you can enable or disable TLS encryption. By default, TLS encryption is enabled, and "Acronis Email Security" uses TLS version 1.2 - and not earlier versions. When TLS encryption is enabled, you can enable support for legacy versions as well [earlier than version 1.2].

To edit the TLS configuration for a domain:

In "Acronis Email Security", go to the Settings > Protected Email Assets page.
Under Inline Domains, locate the domain that you want to edit.
Click the blue arrow on the left of the domain name to display details of the domain.
Locate TLS configuration and then click Edit on the right.

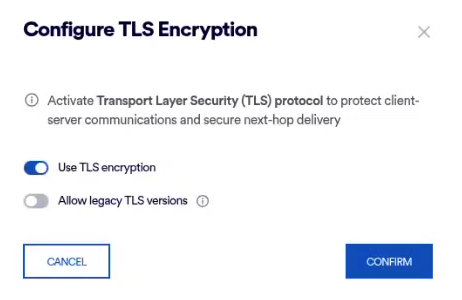

In the Configure TLS Encryption dialog box, make the required changes.

Use TLS encryption: When enabled, "Acronis Email Security" will use TLS encryption when sending emails to this domain. By default, TLS version 1.2 is used.

Note: Before you disable TLS encryption, it is recommended that you try "Allow legacy TLS versions" [see below] - unless you’re sure that the receiving server doesn't support TLS at all.

Allow legacy TLS versions: When enabled, "Acronis Email Security" will be able to use a TLS version earlier than 1.2, if that is what is required by the domain server that receives the emails from "Acronis Email Security".

Click Confirm.

TLS Errors

In some cases, you may encounter an error similar to one of the following:

SSLCertVerificationError [SSL: CERTIFICATE_VERIFY_FAILED] certificate verify failed: Hostname mismatch, certificate is not valid for 'mail.CAV-TYL.IT'. (_ssl.c:1010)

These errors typically occur when:

The destination mail server uses a TLS version lower than 1.2

- or -
The server’s SSL certificate is mis-configured, such as a hostname mismatch.

What you need to do

To avoid email delivery failures, before changing the MX record, configure support for legacy TLS versions [earlier than version 1.2] for the domain. This should be done after the domain has been added to "Acronis Email Security", but before the MX record is updated. See TLS considerations above.

Troubleshooting

If you see this error in "Acronis Email Security", or you notice that emails are not being delivered to your server:

Check for terms like "TLS" or "certificate" in the error message.
Contact "Acronis Email Security" Support [support@perception-point.io], and send them the affected domain name - for further assistance.

SSLError [SSL: DH_KEY_TOO_SMALL] dh key too small (_ssl.c:1010)

This indicates that the server you are using is configured to support weak Diffie-Hellman (DH) parameters, specifically a key size that is considered insecure by modern TLS standards. Most up-to-date clients and libraries — including those of "Acronis Email Security" — enforce a minimum DH key size of 2048 bits to ensure secure communications.

In your case, the server is likely offering DH keys that are smaller than this threshold (often 1024 bits or less), which are vulnerable to attacks and therefore rejected by our client for security reasons.

What you need to do

We recommend that you review your server’s TLS configuration and ensure the following:

You use DH parameters with at least 2048 bits.
Your TLS library and OpenSSL version are up to date.

If the issue persists, it may be necessary configure support for legacy TLS versions [earlier than version 1.2] for the domain. See TLS considerations above.

Note:

When changing or adding the MX record, make sure that the MX record has the highest priority [0].

Setting the MX record with the highest priority [0] ensures that email traffic is directed to the specified mail server first. This is crucial for ensuring that your email service is properly routed and protected by "Acronis Email Security", as it allows the security measures to be applied to incoming emails. Having the highest priority makes sure that this server is the primary point of contact for email delivery, enhancing security and reliability.

On your network provider, change the MX record as follows: [Open the drop-down below for details on your environment.]

	Multi-region enabled	Multi-region not enabled
For US environments:	us.mx-pp.com	inbound-smtp.us-east-1.amazonaws.com
For EU environments:	eu.mx-pp.com	inbound-smtp.eu-west-1.amazonaws.com
For AUS environments:	australia.mx-pp.com	inbound-smtp.eu-west-1.amazonaws.com

Email in your email service is now protected by "Acronis Email Security".

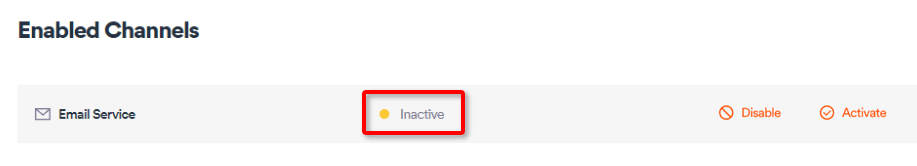

IMPORTANT: After you have configured the "Other" integration, in the Bundles and Channels page, under Enabled Channels, Email Service will appear as Inactive [and not as Active]. This is the expected behavior - and you are not required to activate the new integration.
